Introduction
The LED asset covers the long screens that wrap around the ground at field level and along the upper stadium parapet levels.
These screens are very narrow and run for hundreds of meters. They can be quite challenging to create content for so we have created specs that are as simple and clear as possible.
There are two options for creating content for these LED screens.
- The tiled spec lets you supply a small number of files that are repeated around the ground.
- The 360 spec allows you to create unique content across the whole LED canvas.
Make sure to read the specs carefully as well as follow the best practice guidelines on this page.
If you require assistance understanding how to create content or need help designing content, MKTG Creative is here to help.
Submission & Deadlines
All content is submitted via our content management portal MKTG Drop.
Instructions for uploading and re-using content via MKTG Drop can be found here.
If you are new to MKTG Drop, you can request a log in with the MKTG Drop Team.
All assets will need to be provided to MKTG 5 business days before the first event.
Contact MKTG immediately if you are unable to meet this deadline.
Content guidelines
Legibility
Content should fill up as much of the LED height as possible.
There are no safe areas on the LED, all pixels will be seen.
- Utilise the full height of the LED
- Don’t leave excessive space above/below content
Text and graphics should be large and bold to maximise legibility from a distance.
Shorter messages perform better than longer creatives with a lot of copy.
- Thick and large text is the most legible
- Thin or cursive text can be hard to read
Maximise contrast between the background and foreground elements.
- Maximum contrast
- Not enough contrast
Dark or bold colour backgrounds perform best on broadcast.
White and lighter colours should be avoided as the white can overpower the content.
- Dark and bold colourful background
- White or light background
Animated content can be a great way to draw the eye and display multiple messages over the duration of the content.
However animations must not be too distracting, scroll too fast, feature too many messages or flashing graphics.
Consider having your branding/main message on screen for the majority of the duration.
You can use photos, product images and video on the LED, however using these elements exclusively isn’t very effective in this space.
- Smooth and simple animation
- Animation too fast
Layout
Making sure your elements are evenly spaced ensures that you don’t leave large empty spaces on the LED.
Take into consideration your content will be back to back with another file.
- Even spacing between elements
- Uneven spacing between elements
Make sure to populate the entire LED and not leave large gaps.
You may miss out on exposure if too much space is left blank.
Do not put two lines of text on top of each other on the LED.
- Good coverage
- Poor coverage
Do not use your elements to cover up the seams between files. Content will end up cut in half.
This does not apply for scrolling / moving content.
- No stationary content on edges
- Stationary content on edges
You should keep all logos and assets the same size throughout your LED and across all files.
Field and parapet can have different sizes to each other.
- Same sized elements
- Differently sizes elements
Consider your designs not only on their own but in relation to each other.
If you have a tile that starts and ends with a logo such as below:
When it is tiled, you will end up with two logos next to each other before the text repeats.
There is nothing wrong with this, but it is something to keep in mind.
Some designs include a set of small logos along the bottom of the field LED.
This option can be useful if there is a close up near the LED.
Tiled LED
When using the tile spec, it is important that you design content that doesn’t create visible seams between the tiles.
To check the seams between your tiles, put the tiles you have created together end to end, to test if they blend seamlessly throughout the animation.
Animated elements that move off the side of the tile need to ‘re-appear’ on the opposite side of all tiles.
- Seamless animation
- Not seamless animation
Coloured/Textured backgrounds should blend from end to end.
- Seamless background
- Not seamless background
When tiled and 360 specs are available, you will need to choose which spec type to create, as both have their own advantages.
The tile spec offers the ability to make the content in less files and with more manageable dimensions. However to account for the different sizes of parapet displays, the tile is relatively narrow and doesn’t allow for longer messages.
The 360 spec allows for more flexibility when creating content and the ability to use the whole stadium as a unique canvas. However as there are more files involved that are larger and often connect from one to the next, it can be more involved to set up.
When tiled and 360 specs are available, it is recommended you make your content entirely with the tile OR 360 spec.
However it is possible to deliver a combination of these two specs.
In Drop search the Asset Specification drop down for ‘Combo’.
Combo 1 is for tiled field and 360 parapet.
Combo 2 is for 360 field and tiled parapet.
File creation
Due to the way the LED are played out, it is important that all files are the same duration.
Where a spec requires a certain duration, the files must all be exactly that duration, and not a frame more or less.
For example if you are required to make content that is 15 seconds long, you can check the duration in After Effects in the composition settings. The duration should read ‘0.00.15.00’
- After Effects composition settings
Sometimes when creating files in Adobe Media Encoder or Handbreak, the large dimensions of the LED files can be restricted by the default settings. Make sure to double check the output dimensions.
You may need to change the following Media Encoder settings to the following:
Profile: Main
Level: Unrestricted
- Adobe Media Encoder settings
Tiled LED Spec
You will need to create 1 file for each of the different LED locations. These files will be repeated along the entire LED space.
You are able to supply static or animated content for this space.
Animated content doesn’t have a specified duration requirement, but we recommend 15 or 30 second loops. Contact your event coordinator for more information.
Dimensions
| Location | Dimensions |
|---|---|
|
On Field |
2304 x 96 |
|
Field Perimeter |
1980 x 96 |
|
Parapet |
520 x 64 |
File format
| Content | FPS | File type | Codec | Duration |
|---|---|---|---|---|
|
Video |
50 |
.mp4 |
H.264 |
Unspecified |
|
Static |
- |
.jpg or .png |
RGB - 72dpi |
- |
MKTG Drop asset
| Content | MKTG Drop Asset |
|---|---|
|
On Field Tile Field Perimeter Tile Parapet Tile |
Soccer Tiled LED |
360° LED Spec
The 360° spec is an alternative to the tile spec that allows you to create unique content that covers the full width LED at Marvel Stadium. You will need to create 1 on field file, 5 field perimeter files and 6 parapet files to fill out the stadium.
You are able to supply static or animated content for this space.
Animated content doesn’t have a specified duration requirement, but we recommend 15 or 30 second loops. Contact your event coordinator for more information.
IMPORTANT NOTE:
Parapet 6 and Parapet 1 meet seamlessly.

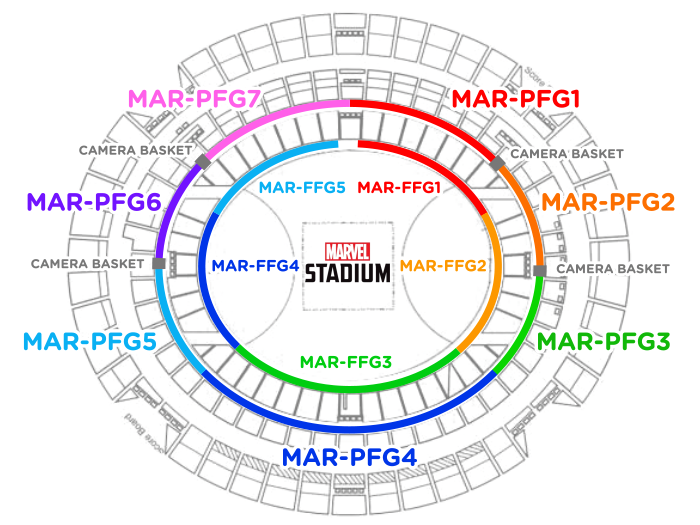

See layout map.
On field dimensions
| MAR-OFG1 |
|---|
|
2304 x 96 |
Field dimensions
| MAR-FFG1 | MAR-FFG2 | MAR-FFG3 | MAR-FFG4 | MAR-FFG5 |
|---|---|---|---|---|
|
9000 x 96 |
9000 x 96 |
11520 x 96 |
9000 x 96 |
9000 x 96 |
Parapet dimensions
| MAR-PFG1 | MAR-PFG2 | MAR-PFG3 | MAR-PFG4 | MAR-PFG5 | MAR-PFG6 |
|---|---|---|---|---|---|
|
4880 x 64 |
5120 x 64 |
11160 x 64 |
11160 x 64 |
5040 x 64 |
6480 x 64 |
File format
| Content | FPS | File type | Codec | Duration |
|---|---|---|---|---|
|
Video |
50 |
.mp4 |
H.264 |
Unspecified |
|
Static |
- |
.jpg or .png |
RGB - 72dpi |
- |
MKTG Drop asset
| Content | MKTG Drop Asset |
|---|---|
|
On Field Tile Field perimeter 360° 360° Parapet 360° |
Marvel Soccer 360 LED |
