- Introduction
The LED asset covers the long screens that wrap around the ground on the field level and along the parapets.
These screens are very narrow and run for hundreds of meters. They can be quite challenging to create content for so we have created specs that are as simple and clear as possible.
Be aware you may be creating content for both field and parapet, or only one of these assets.
There are two options for creating content for these LED screens.
- The tiled spec lets you supply a small number of files that get played repeatedly around the ground.
- The 360 spec allows you to create unique content across the whole LED exactly as it will be displayed.
Make sure to read the specs carefully as well as follow the best practice guidelines at the bottom of this page.
If you require assistance understanding these specs or need help creating content, MKTG Studio is here to help.
We recommend bookmarking this website and joining our MKTG specs mailing list to make sure you always have the latest information.
- Tiled LED - Functions
The tiled spec is the simplest way to create content for the LED at the MCG / Marvel Stadium (these files work across both stadiums). You will need to create 1 file for the field and 1 file for the parapet. These files will be repeated along the entire LED.
You are able to supply static or animated content for this space.
Animated content doesn’t have a specified duration requirement, but we recommend 15 or 30 second loops.
Dimensions
| Location | Dimensions |
|---|---|
| Field | 1980x96 |
| Parapet | 520x64 |
File Format
| Content | Venue | FPS | File type | Codec | Out of game duration |
|---|---|---|---|---|---|
| Video | MCG Marvel Stadium | 50 | .mp4 | H.264 | Unspecified |
| Static | MCG Marvel Stadium | - | .jpg or .png | RGB - 72dpi | - |
MKTG Drop Asset
| Content | MKTG Drop Asset |
|---|---|
| Field only | Functions Perimeter - Tiled |
| Parapet only | Functions Parapet - Tiled |
- 360° LED - MCG - Functions

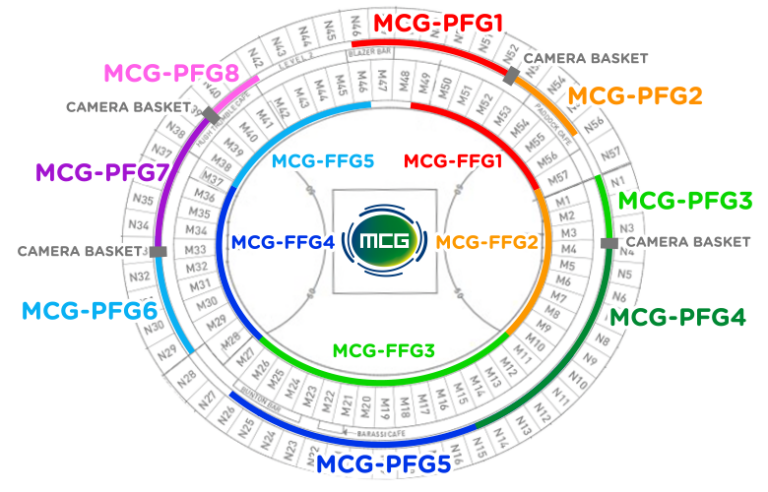

The 360° spec allows you to create unique content that covers the full width LED at the MCG. You will need to create 5 field files and 8 parapet files to fill out the stadium.
You are able to supply static or animated content for this space.
Animated content doesn’t have a specified duration requirement, but we recommend 15 or 30 second loops.
Field Dimensions
| File Name | MCG-FFG1 | MCG-FFG2 | MCG-FFG3 | MCG-FFG4 | MCG-FFG5 |
|---|---|---|---|---|---|
| Dimensions | 7744x96 | 7744x96 | 13824x96 | 9058x96 | 9058x96 |
Parapet Dimensions
| File Name | MCG-PFG1 | MCG-PFG2 | MCG-PFG3 | MCG-PFG4 | MCG-PFG5 | MCG-PFG6 | MCG-PFG7 | MCG-PFG8 |
|---|---|---|---|---|---|---|---|---|
| Dimensions | 7760x64 | 3312x64 | 2160x64 | 10752x64 | 10752x64 | 4096x64 | 5200x64 | 1952x64 |
File Format
| Content | Venue | FPS | File type | Codec | Duration |
|---|---|---|---|---|---|
| Video | MCG | 50 | .mp4 | H.264 | Unspecified |
| Static | MCG | - | .jpg or .png | RGB - 72dpi | - |
MKTG Drop Asset
| Content | MKTG Drop Asset |
|---|---|
| Field & Parapet | MCG Events LED - MCG 360 |
| Field only | Functions Perimeter - MCG 360 |
| Parapet only | Functions Parapet - MCG 360 |
- Content Guidelines
Make sure you read through all our tips and best practice guidelines.
Click a sub-heading to read all about it.
Legibility
Content should fill up as much of the LED height as possible.
There are no safe areas on the LED, all pixels will be seen.
Text and graphics should be large and bold to maximise legibility from a distance.
Shorter messages perform better than longer creatives with a lot of copy.
Maximise contrast between the background and foreground elements.
Dark or bold colour backgrounds perform best on broadcast.
White and lighter colours should be avoided as the white can overpower the content.
Animated content can be a great way to draw the eye and display multiple messages over the duration of the content.
However animations must not be too distracting, scroll too fast, feature too many messages or flashing graphics.
Consider having your branding/main message on screen for the majority of the duration.
You can use photos, product images and video on the LED, however using these elements exclusively isn’t very effective in this space.
Layout
Making sure your elements are evenly spaced ensures that you don’t leave large empty spaces on the LED.
Take into consideration your content will be back to back with another file.
Make sure to populate the entire LED and not leave large gaps.
You may miss out on exposure if too much space is left blank.
Do not put two lines of text on top of each other on the LED.
Do not use your elements to cover up the seams between ANY files. Content will end up cut in half.
This does not apply for scrolling / moving content.
You should keep all logos and assets the same size throughout your LED and across all files.
Field and parapet can have different sizes to each other.
Consider your designs not only on their own but in relation to each other. If you have a tile that starts and ends with a logo such as below:
When it is tiled, you will end up with two logos next to each other before the text repeats.
There is nothing wrong with this, but it is something to keep in mind.
Some designs include a set of small logos along the bottom of the field LED.
This option can be useful if there is a close up near the LED.
Tiled LED
When using the tile spec, it is important that you design content that doesn’t create visible seams between the tiles.
To check the seams between your tiles, put the tiles you have created together end to end, to test if they blend seamlessly throughout the animation.
Animated elements that move off the side of the tile need to ‘re-appear’ on the opposite side of all tiles.
Coloured/Textured backgrounds should blend from end to end.
Files
Due to the way the LED are played out, it is important that all files are the exact same duration.
For in game content make sure the files you create are 15 seconds exactly, and not a frame too long or short.
The duration should read ‘0.00.15.00’
Sometimes when creating files in Adobe Media Encoder or Handbreak, the large dimensions of the LED files can be restricted by the default settings. Make sure to double check the output dimensions.
You may need to change the following Media Encoder settings to the following:
Profile: Main
Level: Unrestricted
- Submission & Deadlines
Submission
All content is to be provided through our upload and content management portal MKTG Drop.
You will need to be set up as a user, contact the MKTG Drop team to get started.
Instructions for how to use Drop are available here.
Instructions for re-using existing content are found here.
Deadlines
| Deadline |
|---|
| 5 working days before event |
Contact MKTG immediately if you are unable to meet these deadlines.
