Quarterboard Top is the name of the graphic that takes up the top area of the big screen

Quarterboard Side is the spec for the associated sponsor logo that gets inserted in the statistics panel

Make sure to read the specs carefully as well as follow the best practice guidelines at the bottom of this page.

If you require assistance understanding these specs or need help creating content, MKTG Studio is here to help.

We recommend bookmarking this website and joining our MKTG specs mailing list to make sure you always have the latest information.

What works best

What to avoid


All content is to be provided through our upload and content management portal MKTG Drop.

You will need to be set up as a user, contact the MKTG Drop team to get started.

Instructions for how to use Drop are available here.

Instructions for re-using existing content are found here.

Club Deadlines

Match dayDeadline
ThursdayMonday 12pm
FridayTuesday 12pm
SaturdayTuesday 12pm
SundayWednesday 12pm
MondayWednesday 12pm
TuesdayThursday 12pm
WednesdayFriday 12pm
First Home MatchContent Deadline
Round 1Wednesday 23rd February 2022
Round 2Thursday 3rd March 2022

Commercial Deadline

Match dayDeadline
AnyMonday 12pm

Contact MKTG immediately if you are unable to meet these deadlines.

When rendering, place your 1920×177 content at the top of a 1920×1080 frame.

If choosing to animate in this space, animations should be simple and not overly distracting due to their proximity to the live vision.

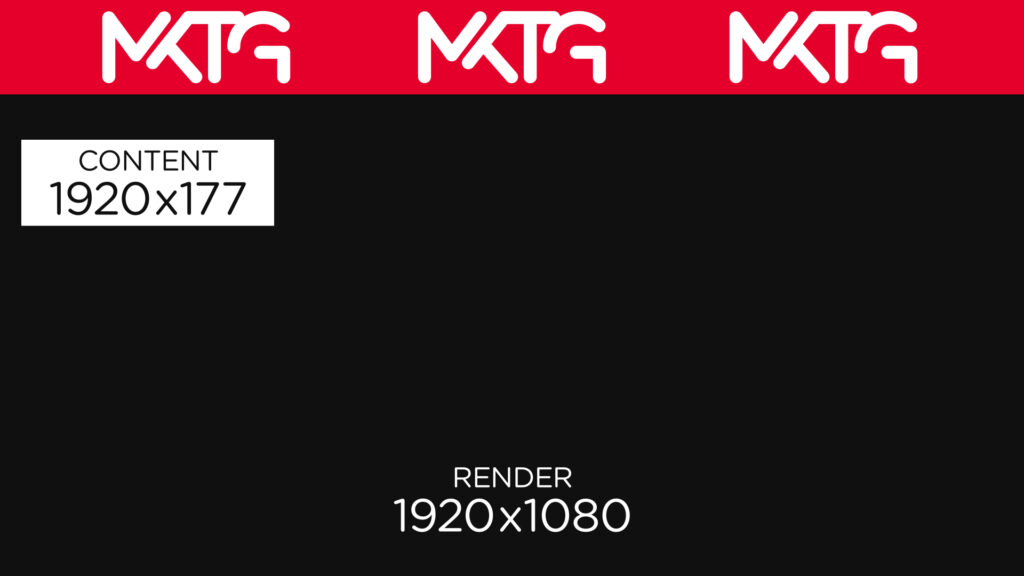

Example of Quarterboard Top render

Quarterboard Top - Dimensions

AssetVenueContent DimensionsRender Dimensions
Quarterboard - TopMCG1920x1771920x1080

Quarterboard Top - File Format

ContentFPSFile typeCodecDuration
Video25.mp4H26415 seconds (looping)
Static-,jpg or .pngRGB-

This graphic requires a large plain area not featuring the logo, to ensure it works with the statistics board. ‘Logo area’ is approximate.

We recommend a simple logo on a solid colour background.

Example of Quarterboard Side

Quarterboard Side - Dimensions

AssetVenueContent DimensionsRender Dimensions
Quarterboard - SideMCG1000x5002500x1500

Quarterboard Side - File Format

ContentFPSFile typeCodecDuration
Static-,jpg or .pngRGB-

Quarterboard All - MKTG Drop Asset

ContentMKTG Drop Asset
Quarterboard Top
Quarterboard Side
